E14WI - Male E-Line Short Ferrule

Material Type
Size

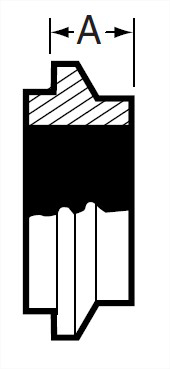

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	0.593	15.06	0.2
1.5	0.75	19.05	0.22
2	0.781	19.84	0.34
2.5	0.843	21.41	0.52
3	0.906	23.01	0.7
4	1.031	26.19	1.04
6	0.814	20.68	--
8	0.814	20.68	--

	VNE part number
OD Tube Size	304	316L
1	E14WI1.0	E14WI-6L1.0
1.5	E14WI1.5	E14WI-6L1.5
2	E14WI2.0	E14WI-6L2.0
2.5	E14WI2.5	E14WI-6L2.5
3	E14WI3.0	E14WI-6L3.0
4	E14WI4.0	E14WI-6L4.0
6	E14WI6.0	E14WI-6L6.0
8	E14WI8.0	E14WI-6L8.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.814
A, mm.	20.68

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.814
A, mm.	20.68

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.593
A, mm.	15.06
Product Weight	0.2

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.75
A, mm.	19.05
Product Weight	0.22

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.781
A, mm.	19.84
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.843
A, mm.	21.41
Product Weight	0.52

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.906
A, mm.	23.01
Product Weight	0.7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.031
A, mm.	26.19
Product Weight	1.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.593
A, mm.	15.06
Product Weight	0.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.75
A, mm.	19.05
Product Weight	0.22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.781
A, mm.	19.84
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.843
A, mm.	21.41
Product Weight	0.52

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.906
A, mm.	23.01
Product Weight	0.7

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.031
A, mm.	26.19
Product Weight	1.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.814
A, mm.	20.68

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.814
A, mm.	20.68
