E14WI-5 - Schedule 5 Male E-Line Short Ferrule

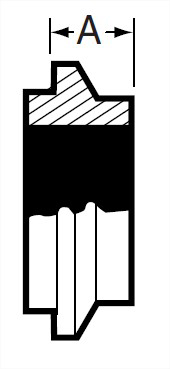

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	0.945	24	2	1.185	30.1	1.315	33.4	0.065	--
1.5	1.024	26.01	2.648	1.77	44.96	1.9	48.26	0.065	0.359
2	1.142	29.01	3.317	2.245	57.02	2.375	60.33	0.065	0.617
2.5	1.22	30.99	3.868	2.709	68.81	2.875	73.03	0.083	0.914
3	1.343	34.11	4.882	3.334	84.68	3.5	88.9	0.083	1.766
4	1.343	34.11	5.882	4.334	110.08	4.5	114.3	0.083	2.342

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	0.945
A, mm.	24
B, in.	2
C, in.	1.185
C, mm.	30.1
D, in.	1.315
D, mm.	33.4
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.024
A, mm.	26.01
B, in.	2.648
C, in.	1.77
C, mm.	44.96
D, in.	1.9
D, mm.	48.26
T Nom Wall, in.	0.065
Product Weight	0.359

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.142
A, mm.	29.01
B, in.	3.317
C, in.	2.245
C, mm.	57.02
D, in.	2.375
D, mm.	60.33
T Nom Wall, in.	0.065
Product Weight	0.617

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.22
A, mm.	30.99
B, in.	3.868
C, in.	2.709
C, mm.	68.81
D, in.	2.875
D, mm.	73.03
T Nom Wall, in.	0.083
Product Weight	0.914

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.343
A, mm.	34.11
B, in.	4.882
C, in.	3.334
C, mm.	84.68
D, in.	3.5
D, mm.	88.9
T Nom Wall, in.	0.083
Product Weight	1.766

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WI
Wayland Part Number	W14WI
Dixon Part Number	14WI
Sanitary Solutions Part Number	SS14WI
Sanitube Part Number	14WI
A, in.	1.343
A, mm.	34.11
B, in.	5.882
C, in.	4.334
C, mm.	110.08
D, in.	4.5
D, mm.	114.3
T Nom Wall, in.	0.083
Product Weight	2.342
