EG7R - Clamp Reducing Tee

Material Type
Size

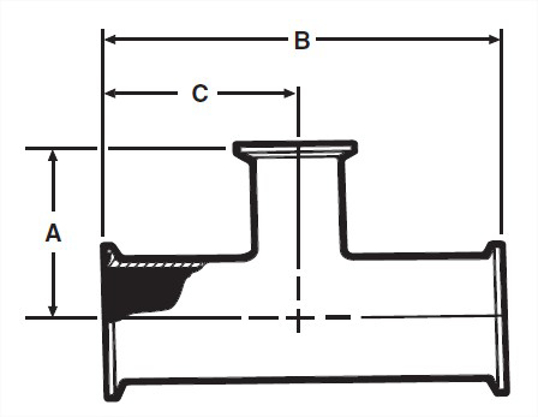

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1.5X1.0	1.875	47.63	4.312	2.156	54.76	--
2.0X1.0	2.125	53.98	5.125	2.562	65.07	0.82
2.0X1.5	2.406	61.11	5.125	2.562	65.07	0.88
2.5X1.5	2.656	67.46	5.687	2.843	72.21	1.14
2.5X2.0	2.812	71.42	5.687	2.843	72.21	1.16
3.0X1.5	2.906	73.81	6.187	3.093	78.56	1.52
3.0X2.0	3.062	77.77	6.187	3.093	78.56	1.48
3.0X2.5	3.093	78.56	6.187	3.093	78.56	1.58
4.0X2.0	3.593	91.26	8.125	4.062	103.17	3.4
4.0X2.5	3.593	91.26	8.125	4.062	103.17	3.44
4.0X3.0	3.593	91.26	8.125	4.062	103.17	3.64
6.0X3.0	6.125	155.58	13	6.5	165.1	--
6.0X4.0	6.25	158.75	13	6.5	165.1	--

	VNE part number
OD Tube Size	304	316L
1.5X1.0	EG7R1.5X1.0	EG7R-6L1.5X1.0
2.0X1.0	EG7R2.0X1.0	EG7R-6L2.0X1.0
2.0X1.5	EG7R2.0X1.5	EG7R-6L2.0X1.5
2.5X1.5	EG7R2.5X1.5	EG7R-6L2.5X1.5
2.5X2.0	EG7R2.5X2.0	EG7R-6L2.5X2.0
3.0X1.5	EG7R3.0X1.5	EG7R-6L3.0X1.5
3.0X2.0	EG7R3.0X2.0	EG7R-6L3.0X2.0
3.0X2.5	EG7R3.0X2.5	EG7R-6L3.0X2.5
4.0X2.0	EG7R4.0X2.0	EG7R-6L4.0X2.0
4.0X2.5	EG7R4.0X2.5	EG7R-6L4.0X2.5
4.0X3.0	EG7R4.0X3.0	EG7R-6L4.0X3.0
6.0X3.0	EG7R6.0X3.0	EG7R-6L6.0X3.0
6.0X4.0	EG7R6.0X4.0	EG7R-6L6.0X4.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-1.5X1-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	1.875
A, mm.	47.63
B, in.	4.312
C, in.	2.156
C, mm.	54.76

Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2X1-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.125
A, mm.	53.98
B, in.	5.125
C, in.	2.562
C, mm.	65.07
Product Weight	0.82

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2X1.5-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.406
A, mm.	61.11
B, in.	5.125
C, in.	2.562
C, mm.	65.07
Product Weight	0.88

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2.5X1.5-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.656
A, mm.	67.46
B, in.	5.687
C, in.	2.843
C, mm.	72.21
Product Weight	1.14

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2.5X2-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.812
A, mm.	71.42
B, in.	5.687
C, in.	2.843
C, mm.	72.21
Product Weight	1.16

Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X1.5-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.906
A, mm.	73.81
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.52

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X2-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.062
A, mm.	77.77
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.48

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X2.5-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.093
A, mm.	78.56
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.58

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-4X2-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.593
A, mm.	91.26
B, in.	8.125
C, in.	4.062
C, mm.	103.17
Product Weight	3.4

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-4X2.5-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.593
A, mm.	91.26
B, in.	8.125
C, in.	4.062
C, mm.	103.17
Product Weight	3.44

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-4X3-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.593
A, mm.	91.26
B, in.	8.125
C, in.	4.062
C, mm.	103.17
Product Weight	3.64

Material Type	304
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R6.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-6X3-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	6.125
A, mm.	155.58
B, in.	13
C, in.	6.5
C, mm.	165.1

Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-6X4-304
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	6.25
A, mm.	158.75
B, in.	13
C, in.	6.5
C, mm.	165.1

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-1.5X1-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	1.875
A, mm.	47.63
B, in.	4.312
C, in.	2.156
C, mm.	54.76

Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2X1-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.125
A, mm.	53.98
B, in.	5.125
C, in.	2.562
C, mm.	65.07
Product Weight	0.82

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2X1.5-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.406
A, mm.	61.11
B, in.	5.125
C, in.	2.562
C, mm.	65.07
Product Weight	0.88

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2.5X1.5-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.656
A, mm.	67.46
B, in.	5.687
C, in.	2.843
C, mm.	72.21
Product Weight	1.14

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-2.5X2-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.812
A, mm.	71.42
B, in.	5.687
C, in.	2.843
C, mm.	72.21
Product Weight	1.16

Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X1.5-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	2.906
A, mm.	73.81
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.52

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X2-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.062
A, mm.	77.77
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.48

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-3X2.5-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.093
A, mm.	78.56
B, in.	6.187
C, in.	3.093
C, mm.	78.56
Product Weight	1.58

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-4X2-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.593
A, mm.	91.26
B, in.	8.125
C, in.	4.062
C, mm.	103.17
Product Weight	3.4

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-4X2.5-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.593
A, mm.	91.26
B, in.	8.125
C, in.	4.062
C, mm.	103.17
Product Weight	3.44

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-4X3-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	3.593
A, mm.	91.26
B, in.	8.125
C, in.	4.062
C, mm.	103.17
Product Weight	3.64

Material Type	316L
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R6.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-6X3-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	6.125
A, mm.	155.58
B, in.	13
C, in.	6.5
C, mm.	165.1

Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG7R6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7RMP
Steel O’brien Part Number	7RMP-6X4-316
Wayland Part Number	W7RMP
Dixon Part Number	B7RMP
Sanitary Solutions Part Number	SS7RMP
Sanitube Part Number	7RMP
A, in.	6.25
A, mm.	158.75
B, in.	13
C, in.	6.5
C, mm.	165.1
