E32WW - Weld Eccentric Reducer

Material Type
Size

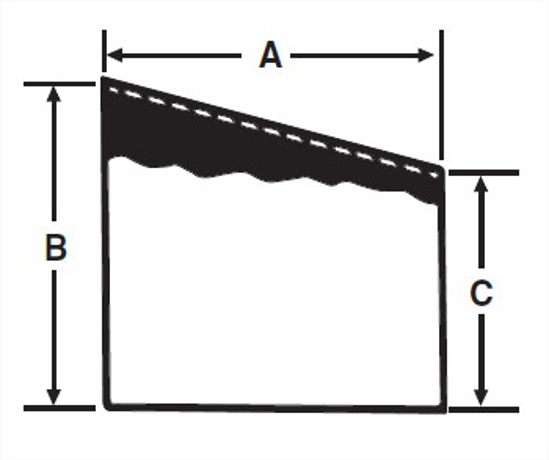

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	T Nom Wall, in.	Product Weight
.75X.5	--	--	--	--	--	--	0.04
1.0X.5	--	--	--	--	--	--	0.06
1.0X.75	--	--	--	--	--	--	0.04
1.5X.5	--	--	--	--	--	--	0.24
1.5X.75	--	--	--	--	--	--	0.22
1.5X1.0	2	50.8	1.5	1	25.4	0.065	0.14
1.5X1.25	1	25.4	1.5	1.25	31.75	0.065	--
2.0X1.0	4	101.6	2	1.25	31.75	0.065	0.3
2.0X1.25	3	76.2	2	1.25	31.75	0.065	--
2.0X1.5	2	50.8	2	1.5	38.1	0.065	0.2
2.5X1.0	--	--	--	--	--	--	0.54
2.5X1.5	4	101.6	2.5	1.5	38.1	0.065	0.46
2.5X2.0	2	50.8	2.5	2	50.8	0.065	0.28
3.0X1.0	--	--	--	--	--	--	--
3.0X1.5	--	--	--	--	--	--	--
3.0X2.0	4	101.6	3	2	50.8	0.065	0.78
3.0X2.5	2	50.8	3	2.5	63.5	0.065	0.34
4.0X1.0	--	--	--	--	--	--	--
4.0X1.5	--	--	--	--	--	--	--
4.0X2.0	8	203.2	4	2	50.8	0.083 x 0.065	1.48
4.0X2.5	6	152.4	4	2.5	63.5	0.083 x 0.065	1.24
4.0X3.0	4	101.6	4	3	76.2	0.083 x 0.065	0.94
6.0X2.0	5.5	139.7	6	2	50.8	0.109 X 0.065	--
6.0X3.0	5.5	139.7	6	3	76.2	0.109 X 0.083	2.22
6.0X4.0	5.5	139.7	6	4	101.6	0.109 X 0.083	2.5

	VNE part number
OD Tube Size	304	316L
.75X.5	--	E32WW-6L.75X.5
1.0X.5	--	E32WW-6L1.0X.5
1.0X.75	--	E32WW-6L1.0X.75
1.5X.5	--	E32WW-6L1.5X.5
1.5X.75	--	E32WW-6L1.5X.75
1.5X1.0	E32WW1.5X1.0	E32WW-6L1.5X1.0
1.5X1.25	--	E32WW-6L1.5X1.25
2.0X1.0	E32WW2.0X1.0	E32WW-6L2.0X1.0
2.0X1.25	E32WW2.0X1.25	E32WW-6L2.0X1.25
2.0X1.5	E32WW2.0X1.5	E32WW-6L2.0X1.5
2.5X1.0	E32WW2.5X1.0	E32WW-6L2.5X1.0
2.5X1.5	E32WW2.5X1.5	E32WW-6L2.5X1.5
2.5X2.0	E32WW2.5X2.0	E32WW-6L2.5X2.0
3.0X1.0	E32WW3.0X1.0	E32WW-6L3.0X1.0
3.0X1.5	E32WW3.0X1.5	E32WW-6L3.0X1.5
3.0X2.0	E32WW3.0X2.0	E32WW-6L3.0X2.0
3.0X2.5	E32WW3.0X2.5	E32WW-6L3.0X2.5
4.0X1.0	--	E32WW-6L4.0X1.0
4.0X1.5	--	E32WW-6L4.0X1.5
4.0X2.0	E32WW4.0X2.0	E32WW-6L4.0X2.0
4.0X2.5	E32WW4.0X2.5	E32WW-6L4.0X2.5
4.0X3.0	E32WW4.0X3.0	E32WW-6L4.0X3.0
6.0X2.0	E32WW6.0X2.0	E32WW-6L6.0X2.0
6.0X3.0	E32WW6.0X3.0	E32WW-6L6.0X3.0
6.0X4.0	E32WW6.0X4.0	E32WW-6L6.0X4.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	1.5
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.14

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	2
C, in.	1.25
C, mm.	31.75
T Nom Wall, in.	0.065
Product Weight	0.3

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.0X1.25
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	3
A, mm.	76.2
B, in.	2
C, in.	1.25
C, mm.	31.75
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	2
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.2

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	2.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	2.5
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	3
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.78

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	3
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	8
A, mm.	203.2
B, in.	4
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.083 x 0.065
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	6
A, mm.	152.4
B, in.	4
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.083 x 0.065
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	4
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.083 x 0.065
Product Weight	0.94

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X2.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.109 X 0.065

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.109 X 0.083
Product Weight	2.22

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.109 X 0.083
Product Weight	2.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.0X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	3
A, mm.	76.2
B, in.	2
C, in.	1.25
C, mm.	31.75
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	2
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.2

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	2.5
C, in.	1.5
C, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.46

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	2.5
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	3
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	3
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X1.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	8
A, mm.	203.2
B, in.	4
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.083 x 0.065
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	6
A, mm.	152.4
B, in.	4
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.083 x 0.065
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	4
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.083 x 0.065
Product Weight	0.94

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X2.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	2
C, mm.	50.8
T Nom Wall, in.	0.109 X 0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.109 X 0.083
Product Weight	2.22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.109 X 0.083
Product Weight	2.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	.75X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.06

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	2
A, mm.	50.8
B, in.	1.5
C, in.	1
C, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.14

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	1
A, mm.	25.4
B, in.	1.5
C, in.	1.25
C, mm.	31.75
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
A, in.	4
A, mm.	101.6
B, in.	2
C, in.	1.25
C, mm.	31.75
T Nom Wall, in.	0.065
Product Weight	0.3

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L32
Wayland Part Number	W32W
Dixon Part Number	B32W
Sanitary Solutions Part Number	SS32W
Sanitube Part Number	32W
Product Weight	0.22
