E16AI-14I - Male E-Line Solid End Cap

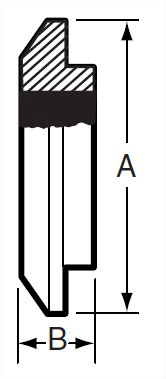

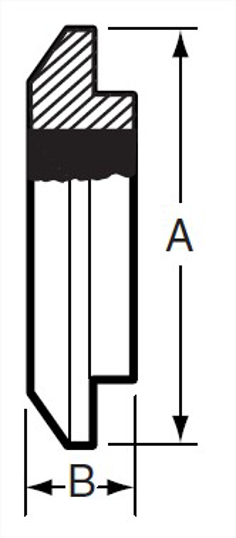

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	2	50.8	0.5	0.3
1.5	2	50.8	0.5	0.36
2	2.625	66.68	0.562	0.74
2.5	3.312	84.12	0.75	1.42
3	3.875	98.43	0.75	2
4	4.875	123.83	0.75	3.32
6	7.5	190.5	0.875	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.3

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2.625
A, mm.	66.68
B, in.	0.562
Product Weight	0.74

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	3.312
A, mm.	84.12
B, in.	0.75
Product Weight	1.42

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	3.875
A, mm.	98.43
B, in.	0.75
Product Weight	2

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	4.875
A, mm.	123.83
B, in.	0.75
Product Weight	3.32

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E16AI-14I6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	7.5
A, mm.	190.5
B, in.	0.875

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-14I1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.3

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-14I1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2
A, mm.	50.8
B, in.	0.5
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2.625
A, mm.	66.68
B, in.	0.562
Product Weight	0.74

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-14I2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	3.312
A, mm.	84.12
B, in.	0.75
Product Weight	1.42

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-14I3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	3.875
A, mm.	98.43
B, in.	0.75
Product Weight	2

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-14I4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	4.875
A, mm.	123.83
B, in.	0.75
Product Weight	3.32

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E16AI-14I6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	7.5
A, mm.	190.5
B, in.	0.875
