3SRW - Din Thread by Inch Female Ferrule

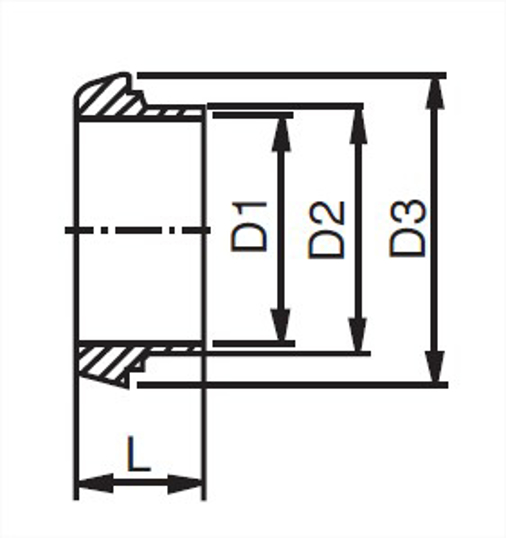

View Dimensions

Dimensions

OD Tube Size	D1, in.	D1, mm.	D2, in.	D2, mm.	D3, in.	D3, mm.	L, in.	L, mm.	Product Weight
1	0.9	22.9	1	25.4	1.73	44	0.87	22	0.36
1.5	1.38	35.1	1.5	38.1	2.2	56	1.02	26	0.36
2	1.88	47.8	2	50.8	2.7	68.5	1.1	28	0.52
2.5	2.38	60.5	2.5	63.5	3.39	86	1.26	32	0.88
3	--	N/A	N/A	--	--	N/A	--	N/A	--
4	3.84	97.6	4	101.6	4.76	121	1.73	44	1.98

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	3.84
D1, mm.	97.6
D2, in.	4
D2, mm.	101.6
D3, in.	4.76
D3, mm.	121
L, in.	1.73
L, mm.	44
Product Weight	1.98

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	3.84
D1, mm.	97.6
D2, in.	4
D2, mm.	101.6
D3, in.	4.76
D3, mm.	121
L, in.	1.73
L, mm.	44
Product Weight	1.9

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	0.9
D1, mm.	22.9
D2, in.	1
D2, mm.	25.4
D3, in.	1.73
D3, mm.	44
L, in.	0.87
L, mm.	22
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	0.9
D1, mm.	22.9
D2, in.	1
D2, mm.	25.4
D3, in.	1.73
D3, mm.	44
L, in.	0.87
L, mm.	22
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	1.38
D1, mm.	35.1
D2, in.	1.5
D2, mm.	38.1
D3, in.	2.2
D3, mm.	56
L, in.	1.02
L, mm.	26
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.38
D1, mm.	35.1
D2, in.	1.5
D2, mm.	38.1
D3, in.	2.2
D3, mm.	56
L, in.	1.02
L, mm.	26
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	1.88
D1, mm.	47.8
D2, in.	2
D2, mm.	50.8
D3, in.	2.7
D3, mm.	68.5
L, in.	1.1
L, mm.	28
Product Weight	0.52

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	1.88
D1, mm.	47.8
D2, in.	2
D2, mm.	50.8
D3, in.	2.7
D3, mm.	68.5
L, in.	1.1
L, mm.	28
Product Weight	0.52

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, in.	2.38
D1, mm.	60.5
D2, in.	2.5
D2, mm.	63.5
D3, in.	3.39
D3, mm.	86
L, in.	1.26
L, mm.	32
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, in.	2.38
D1, mm.	60.5
D2, in.	2.5
D2, mm.	63.5
D3, in.	3.39
D3, mm.	86
L, in.	1.26
L, mm.	32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D1, mm.	N/A
D2, in.	N/A
D3, mm.	N/A
L, mm.	N/A

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Catalog File	Fittings Catalog.pdf
D1, mm.	N/A
D2, in.	N/A
D3, mm.	N/A
L, mm.	N/A
Product Weight	0.88
