4-NUT - Din 11851 Union Nut

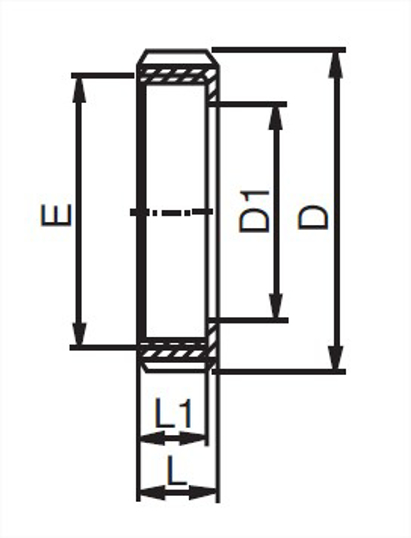

View Dimensions

Dimensions

OD Tube Size	D, in.	D, mm.	D1, in.	D1, mm.	E, in.	L, in.	L, mm.	L1, in.	L1, mm.	Product Weight
DN10	1.5	38	0.75	19	Rd 28 x 1/8"	0.71	18	0.59	15	0.16
DN15	1.73	44	0.98	25	Rd 34 x 1/8"	0.71	18	0.59	15	0.18
DN20	2.13	54	1.22	31	Rd 44 x 1/6"	0.79	20	0.67	17	0.28
DN25	2.48	63	1.42	36	Rd 52 x 1/6"	0.83	21	0.71	18	0.34
DN32	2.76	70	1.65	42	Rd 58 x 1/6"	0.83	21	0.71	18	0.44
DN40	3.07	78	1.93	49	Rd 65 X 1/6"	0.83	21	0.71	18	0.52
DN50	3.62	92	2.44	62	Rd 78 x 1/6"	0.87	22	0.75	19	0.72
DN65	4.41	112	3.15	80	Rd 95 x 1/6"	0.98	25	0.83	21	1.16
DN75	4.72	120	3.41	86.5	Rd 104 x 1/6"	1.14	29	0.98	25	--
DN80	5	127	3.7	94	Rd 110 x 1/4"	1.14	29	0.98	25	1.6
DN100	5.83	148	4.53	115	Rd 130 x 1/4"	1.22	31	1.02	26	2.1
DN125	7.01	178	5.43	138	Rd 160 x 1/4"	1.38	35	1.18	30	--
DN150	8.27	210	6.46	164	Rd 190 x 1/4"	1.57	40	1.34	34	--
DN200	10.24	260	8.46	215	Rd 240 x 1/4"	1.73	44	1.5	38	--

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN10
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN10
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	1.5
D, mm.	38
D1, in.	0.75
D1, mm.	19
E, in.	Rd 28 x 1/8"
L, in.	0.71
L, mm.	18
L1, in.	0.59
L1, mm.	15
Product Weight	0.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN15
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN15
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	1.73
D, mm.	44
D1, in.	0.98
D1, mm.	25
E, in.	Rd 34 x 1/8"
L, in.	0.71
L, mm.	18
L1, in.	0.59
L1, mm.	15
Product Weight	0.18

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN20
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN20
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	2.13
D, mm.	54
D1, in.	1.22
D1, mm.	31
E, in.	Rd 44 x 1/6"
L, in.	0.79
L, mm.	20
L1, in.	0.67
L1, mm.	17
Product Weight	0.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN25
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN25
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	2.48
D, mm.	63
D1, in.	1.42
D1, mm.	36
E, in.	Rd 52 x 1/6"
L, in.	0.83
L, mm.	21
L1, in.	0.71
L1, mm.	18
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN32
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN32
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	2.76
D, mm.	70
D1, in.	1.65
D1, mm.	42
E, in.	Rd 58 x 1/6"
L, in.	0.83
L, mm.	21
L1, in.	0.71
L1, mm.	18
Product Weight	0.44

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN40
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN40
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	3.07
D, mm.	78
D1, in.	1.93
D1, mm.	49
E, in.	Rd 65 X 1/6"
L, in.	0.83
L, mm.	21
L1, in.	0.71
L1, mm.	18
Product Weight	0.52

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN50
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN50
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	3.62
D, mm.	92
D1, in.	2.44
D1, mm.	62
E, in.	Rd 78 x 1/6"
L, in.	0.87
L, mm.	22
L1, in.	0.75
L1, mm.	19
Product Weight	0.72

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN65
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN65
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	4.41
D, mm.	112
D1, in.	3.15
D1, mm.	80
E, in.	Rd 95 x 1/6"
L, in.	0.98
L, mm.	25
L1, in.	0.83
L1, mm.	21
Product Weight	1.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN75
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN75
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	4.72
D, mm.	120
D1, in.	3.41
D1, mm.	86.5
E, in.	Rd 104 x 1/6"
L, in.	1.14
L, mm.	29
L1, in.	0.98
L1, mm.	25

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN80
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN80
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	5
D, mm.	127
D1, in.	3.7
D1, mm.	94
E, in.	Rd 110 x 1/4"
L, in.	1.14
L, mm.	29
L1, in.	0.98
L1, mm.	25
Product Weight	1.6

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN100
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN100
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	5.83
D, mm.	148
D1, in.	4.53
D1, mm.	115
E, in.	Rd 130 x 1/4"
L, in.	1.22
L, mm.	31
L1, in.	1.02
L1, mm.	26
Product Weight	2.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN125
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN125
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	7.01
D, mm.	178
D1, in.	5.43
D1, mm.	138
E, in.	Rd 160 x 1/4"
L, in.	1.38
L, mm.	35
L1, in.	1.18
L1, mm.	30

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN150
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN150
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	8.27
D, mm.	210
D1, in.	6.46
D1, mm.	164
E, in.	Rd 190 x 1/4"
L, in.	1.57
L, mm.	40
L1, in.	1.34
L1, mm.	34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	DN200
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Nut
OD Tube Size	DN200
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Catalog File	Fittings Catalog.pdf
D, in.	10.24
D, mm.	260
D1, in.	8.46
D1, mm.	215
E, in.	Rd 240 x 1/4"
L, in.	1.73
L, mm.	44
L1, in.	1.5
L1, mm.	38
