E7RWWCS - Weld X Clamp Short Outlet Reducing Tee

Material Type
Size

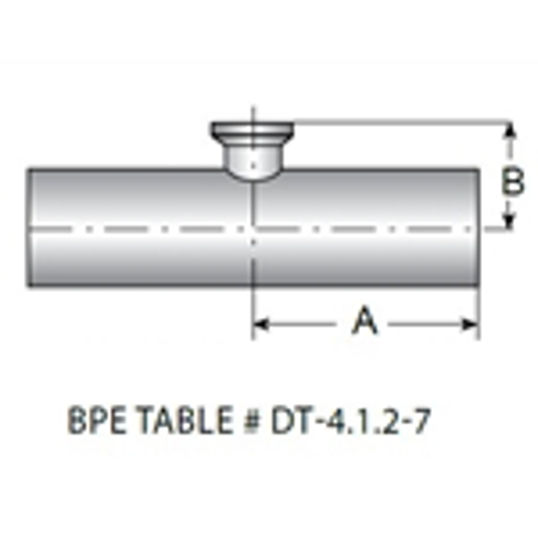

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	T Nom Wall, in.
.75X.5	2	50.8	1	0.065
1.0X.5	2.12	53.85	1.12	0.065
1.0X.75	2.12	53.85	1.12	0.065
1.5X.5	2.37	60.2	1.37	0.065
1.5X.75	2.37	60.2	1.37	0.065
1.5X1.0	2.37	60.2	1.37	0.065
2.0X.5	2.87	72.9	1.62	0.065
2.0X.75	2.87	72.9	1.62	0.065
2.0X1.0	2.87	72.9	1.62	0.065
2.0X1.5	2.87	72.9	1.62	0.065
2.5X.5	3.12	79.25	1.87	0.065
2.5X.75	3.12	79.25	1.87	0.065
2.5X1.0	3.12	79.25	1.87	0.065
2.5X1.5	3.12	79.25	1.87	0.065
2.5X2.0	3.12	79.25	1.87	0.065
3.0X.5	3.37	85.6	2.12	0.065
3.0X.75	3.37	85.6	2.12	0.065
3.0X1.0	3.37	85.6	2.12	0.065
3.0X1.5	3.37	85.6	2.12	0.065
3.0X2.0	3.37	85.6	2.12	0.065
3.0X2.5	3.37	85.6	2.12	0.065
4.0X.5	4.12	104.65	2.62	0.083
4.0X.75	4.12	104.65	2.62	0.083
4.0X1.0	4.12	104.65	2.62	0.083
4.0X1.5	4.12	104.65	2.62	0.083
4.0X2.0	4.12	104.65	2.62	0.083
4.0X2.5	4.12	104.65	2.62	0.083
4.0X3.0	4.12	104.65	2.62	0.083
6.0X4.0	5.63	143	3.75	0.109

	VNE part number
OD Tube Size	316L
.75X.5	E7RWWCS-6L.75X.5
1.0X.5	E7RWWCS-6L1.0X.5
1.0X.75	E7RWWCS-6L1.0X.75
1.5X.5	E7RWWCS-6L1.5X.5
1.5X.75	E7RWWCS-6L1.5X.75
1.5X1.0	E7RWWCS-6L1.5X1.0
2.0X.5	E7RWWCS-6L2.0X.5
2.0X.75	E7RWWCS-6L2.0X.75
2.0X1.0	E7RWWCS-6L2.0X1.0
2.0X1.5	E7RWWCS-6L2.0X1.5
2.5X.5	E7RWWCS-6L2.5X.5
2.5X.75	E7RWWCS-6L2.5X.75
2.5X1.0	E7RWWCS-6L2.5X1.0
2.5X1.5	E7RWWCS-6L2.5X1.5
2.5X2.0	E7RWWCS-6L2.5X2.0
3.0X.5	E7RWWCS-6L3.0X.5
3.0X.75	E7RWWCS-6L3.0X.75
3.0X1.0	E7RWWCS-6L3.0X1.0
3.0X1.5	E7RWWCS-6L3.0X1.5
3.0X2.0	E7RWWCS-6L3.0X2.0
3.0X2.5	E7RWWCS-6L3.0X2.5
4.0X.5	E7RWWCS-6L4.0X.5
4.0X.75	E7RWWCS-6L4.0X.75
4.0X1.0	E7RWWCS-6L4.0X1.0
4.0X1.5	E7RWWCS-6L4.0X1.5
4.0X2.0	E7RWWCS-6L4.0X2.0
4.0X2.5	E7RWWCS-6L4.0X2.5
4.0X3.0	E7RWWCS-6L4.0X3.0
6.0X4.0	E7RWWCS6L6.0X4.0

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	.75X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-.75X.50-7-316
A, in.	2
A, mm.	50.8
B, in.	1
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-1X.50-7-316
A, in.	2.12
A, mm.	53.85
B, in.	1.12
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-1X.75-7-316
A, in.	2.12
A, mm.	53.85
B, in.	1.12
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-1.5X.50-7-316
A, in.	2.37
A, mm.	60.2
B, in.	1.37
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-1.5X.75-7-316
A, in.	2.37
A, mm.	60.2
B, in.	1.37
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-1.5X1-7-316
A, in.	2.37
A, mm.	60.2
B, in.	1.37
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2X.50-7-316
A, in.	2.87
A, mm.	72.9
B, in.	1.62
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2X.75-7-316
A, in.	2.87
A, mm.	72.9
B, in.	1.62
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2X1-7-316
A, in.	2.87
A, mm.	72.9
B, in.	1.62
T Nom Wall, in.	0.065

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2X1.5-7-316
A, in.	2.87
A, mm.	72.9
B, in.	1.62
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2.5X.50-7-316
A, in.	3.12
A, mm.	79.25
B, in.	1.87
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2.5X.75-7-316
A, in.	3.12
A, mm.	79.25
B, in.	1.87
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS2.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2.5X1-7-316
A, in.	3.12
A, mm.	79.25
B, in.	1.87
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2.5X1.5-7-316
A, in.	3.12
A, mm.	79.25
B, in.	1.87
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-2.5X2-7-316
A, in.	3.12
A, mm.	79.25
B, in.	1.87
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-3X.50-7-316
A, in.	3.37
A, mm.	85.6
B, in.	2.12
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-3X.75-7-316
A, in.	3.37
A, mm.	85.6
B, in.	2.12
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS3.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-3X1-7-316
A, in.	3.37
A, mm.	85.6
B, in.	2.12
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-3X1.5-7-316
A, in.	3.37
A, mm.	85.6
B, in.	2.12
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-3X2-7-316
A, in.	3.37
A, mm.	85.6
B, in.	2.12
T Nom Wall, in.	0.065

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-3X2.5-7-316
A, in.	3.37
A, mm.	85.6
B, in.	2.12
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X.50-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X.75
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X.75-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Material Type	316L
Size	4.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X1.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS4.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X1-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Material Type	316L
Size	4.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X1.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS4.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X1.5-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X2-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X2.5-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-4X3-7-316
A, in.	4.12
A, mm.	104.65
B, in.	2.62
T Nom Wall, in.	0.083

Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7RWWCS6.0X4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7RWWMS-6X4-7-316
A, in.	5.63
A, mm.	143
B, in.	3.75
T Nom Wall, in.	0.109
