TE32SWW - BPE AWF Eccentric Reducer 6MO UNS N08367

Size
Surface Finish

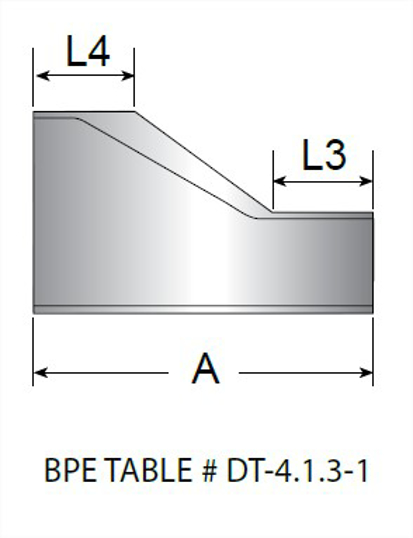

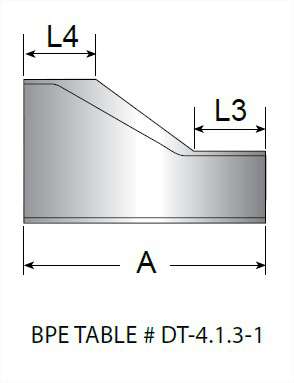

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
.75X.5	2.125	53.98	1	1	25.4	0.11
1.0X.5	2.5	63.5	1	1	25.4	0.174
1.0X.75	2.125	53.98	1	1	25.4	0.165
1.5X.5	--	0	--	--	--	0.353
1.5X.75	3	76.2	1	1	25.4	0.165
1.5X1.0	2.5	63.5	1	1	25.4	0.37
2.0X.5	--	0	--	--	--	0.734
2.0X.75	--	0	--	--	--	0.831
2.0X1.0	3.375	85.73	1	1	25.4	0.769
2.0X1.5	2.5	63.5	1	1	25.4	0.538
2.5X.5	--	0	--	--	--	1.248
2.5X.75	--	0	--	--	--	0.944
2.5X1.0	--	0	--	--	--	1.032
2.5X1.5	3.375	85.73	1	1	25.4	1.217
2.5X2.0	2.5	63.5	1	1	25.4	0.73
3.0X1.0	--	0	--	--	--	2.121
3.0X1.5	4.25	107.95	1	1.5	38.1	0.58
3.0X2.0	3.375	85.73	1	1.5	38.1	1.742
3.0X2.5	2.625	66.68	1	1.5	38.1	0.54
4.0X1.0	--	0	--	--	--	--
4.0X1.5	--	0	--	--	--	--
4.0X2.0	5.125	130.18	1	1.5	38.1	1.499
4.0X2.5	4.25	107.95	1	1.5	38.1	1.219
4.0X3.0	3.875	98.43	1.5	1.5	38.1	3.155

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	6MO
.75X.5	TE32SWW6MO.75X.5-PL
1.0X.5	TE32SWW6MO1.0X.5-PL
1.0X.75	TE32SWW6MO1.0X.75-PL
1.5X.5	TE32SWW6MO1.5X.5-PL
1.5X.75	TE32SWW6MO1.5X.75-PL
1.5X1.0	TE32SWW6MO1.5X1.0-PL
2.0X.5	TE32SWW6MO2.0X.5-PL
2.0X.75	TE32SWW6MO2.0X.75-PL
2.0X1.0	TE32SWW6MO2.0X1.0-PL
2.0X1.5	TE32SWW6MO2.0X1.5-PL
2.5X.5	TE32SWW6MO2.5X.5-PL
2.5X.75	TE32SWW6MO2.5X.75-PL
2.5X1.0	TE32SWW6MO2.5X1.0-PL
2.5X1.5	TE32SWW6MO2.5X1.5-PL
2.5X2.0	TE32SWW6MO2.5X2.0-PL
3.0X1.0	TE32SWW6MO3.0X1.0-PL
3.0X1.5	TE32SWW6MO3.0X1.5-PL
3.0X2.0	TE32SWW6MO3.0X2.0-PL
3.0X2.5	TE32SWW6MO3.0X2.5-PL
4.0X1.0	TE32SWW6MO4.0X1.0-PL
4.0X1.5	TE32SWW6MO4.0X1.5-PL
4.0X2.0	TE32SWW6MO4.0X2.0-PL
4.0X2.5	TE32SWW6MO4.0X2.5-PL
4.0X3.0	TE32SWW6MO4.0X3.0-PL

Cad Model File	Click here to request 3D Step File
Size	.75X.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.3-1
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
