E24C - Hex Tube Hanger With Grommets And 3/8 NPT Coupling

E24C - Hex Tube Hanger With Grommets And 3/8 NPT Coupling

Material Type
Size

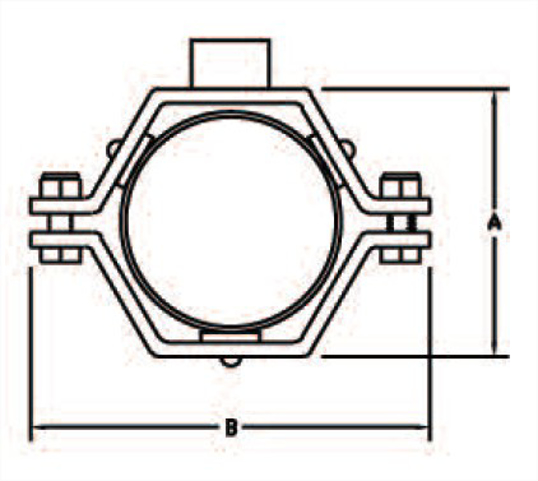

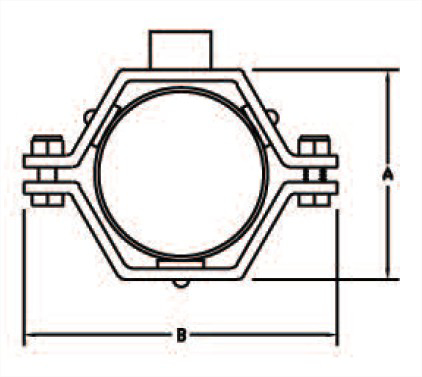

View Dimensions

Dimensions

E24C - Hex Tube Hanger With Grommets And 3/8 NPT Coupling

OD Tube Size	Product Weight
0.5	0.6
0.75	0.563
1	0.555
1.5	0.555
2	0.688
2.5	0.734
3	0.836
4	1.063
6	1.984

Close

	VNE part number
OD Tube Size	304, Buna
0.5	E24C.5
0.75	E24C.75
1	E24C1.0
1.5	E24C1.5
2	E24C2.0
2.5	E24C2.5
3	E24C3.0
4	E24C4.0
6	E24C6.0

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	0.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.6

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	0.75
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.563

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	1
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.555

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.555

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.688

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	2.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.734

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	3
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	0.836

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	1.063

Cad Model File	Click here to request 3D Step File
Material Type	304, Buna
Size	6
ID / OD Polish	Tumble ID / Tumble OD
Connections	Hanger
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304, Buna
Material Test Reports	Not Available
Passivated	Not Applicable
Catalog File	Fittings Catalog.pdf
Product Weight	1.984

Click here to request 3D Step File
