14PR - Plain BS Ferrule Short

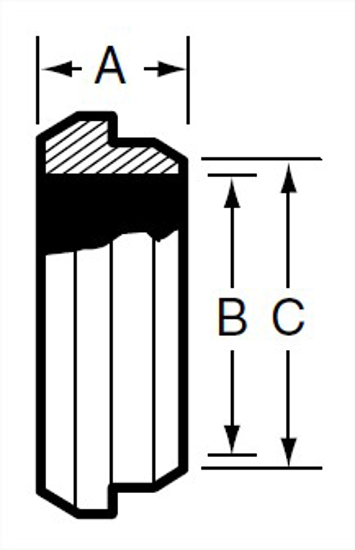

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	0.687	17.45	0.87	1	25.4	0.1
1.5	0.687	17.45	1.37	1	25.4	0.16
2	0.718	18.24	1.87	2	50.8	0.26
2.5	0.843	21.41	2.37	2.5	63.5	0.34
3	0.937	23.8	2.87	3	76.2	0.48
4	1	25.4	3.834	4	101.6	0.84

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.687
A, mm.	17.45
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.687
A, mm.	17.45
B, in.	1.37
C, in.	1
C, mm.	25.4
Product Weight	0.16

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.718
A, mm.	18.24
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.26

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.843
A, mm.	21.41
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.937
A, mm.	23.8
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	1
A, mm.	25.4
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	0.84

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.687
A, mm.	17.45
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.687
A, mm.	17.45
B, in.	1.37
C, in.	1
C, mm.	25.4
Product Weight	0.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.718
A, mm.	18.24
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.26

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.843
A, mm.	21.41
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	0.937
A, mm.	23.8
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14PRF
Wayland Part Number	W14PRF
Dixon Part Number	14PRF
Sanitary Solutions Part Number	SS14PRF
Sanitube Part Number	14PRF
A, in.	1
A, mm.	25.4
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	0.84
