22 - Thread BS X Female NPT Adapter

22 - Thread BS X Female NPT Adapter

Material Type
Size

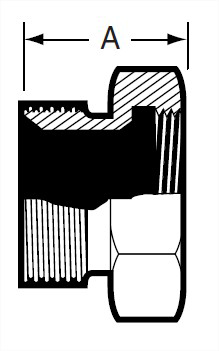

View Dimensions

Dimensions

22 - Thread BS X Female NPT Adapter

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.937	49.2	--
1.5	2.156	54.76	--
2	2.156	54.76	--
2.5	2.468	62.69	--
3	2.718	69.04	--
4	3.031	76.99	--

Close

	VNE part number
OD Tube Size	304	316L
1	221.0	22-6L1.0
1.5	221.5	22-6L1.5
2	222.0	22-6L2.0
2.5	222.5	22-6L2.5
3	223.0	22-6L3.0
4	224.0	22-6L4.0

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	221.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.937
A, mm.	49.2

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	221.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.156
A, mm.	54.76

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	222.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.156
A, mm.	54.76

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	222.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.468
A, mm.	62.69

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	223.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.718
A, mm.	69.04

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	224.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.031
A, mm.	76.99

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	221.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.937
A, mm.	49.2
Product Weight	0.4

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	221.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.156
A, mm.	54.76
Product Weight	0.76

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	222.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.156
A, mm.	54.76
Product Weight	0.94

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	222.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.468
A, mm.	62.69
Product Weight	1.36

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	223.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.718
A, mm.	69.04
Product Weight	2.66

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	224.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.031
A, mm.	76.99
Product Weight	4.22
