E23BI - Male E-Line Thermometer Cap

E23BI - Male E-Line Thermometer Cap

Material Type
Size

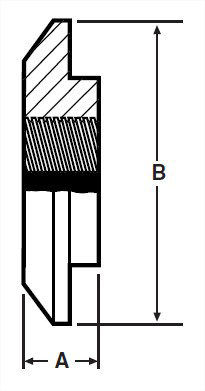

View Dimensions

Dimensions

E23BI - Male E-Line Thermometer Cap

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	0.5	12.7	2	0.24
1.5	0.5	12.7	2	0.31
2	0.562	14.27	2.625	0.66
2.5	0.75	19.05	3.312	1.24
3	0.75	19.05	3.875	1.84
4	0.75	19.05	4.875	3.16

Close

	VNE part number
OD Tube Size	304	316L
1	E23BI1.0	E23BI-6L1.0
1.5	E23BI1.5	E23BI-6L1.5
2	E23BI2.0	E23BI-6L2.0
2.5	E23BI2.5	E23BI-6L2.5
3	E23BI3.0	E23BI-6L3.0
4	E23BI4.0	E23BI-6L4.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	2
Product Weight	0.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	2
Product Weight	0.31

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.562
A, mm.	14.27
B, in.	2.625
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	3.312
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	3.875
Product Weight	1.84

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	4.875
Product Weight	3.16

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	2
Product Weight	0.31

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.562
A, mm.	14.27
B, in.	2.625
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	3.312
Product Weight	1.24

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	3.875
Product Weight	1.84

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	4.875
Product Weight	3.16

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	2
Product Weight	0.24

Click here to request 3D Step File
