EG231FPR - Clamp X Plain BS w/13H Nut 90 Degree Elbow

EG231FPR - Clamp X Plain BS w/13H Nut 90 Degree Elbow

Material Type
Size

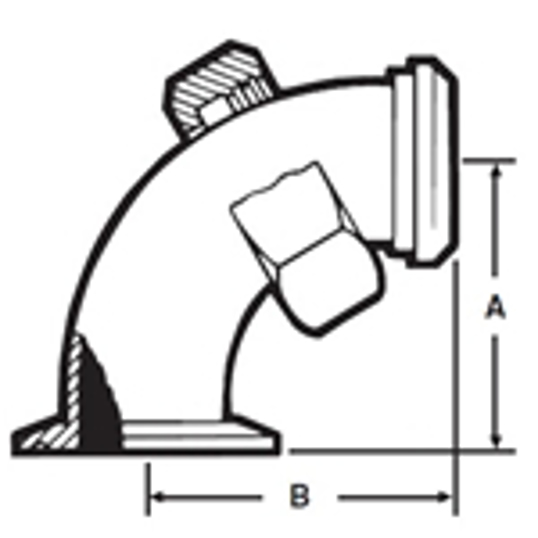

View Dimensions

Dimensions

EG231FPR - Clamp X Plain BS w/13H Nut 90 Degree Elbow

OD Tube Size	A, in.	A, mm.	B, in.
2.0X1.0	2	50.8	2.187
2.0X1.5	2.75	69.85	2.968
2.5X1.5	2.75	69.85	2.968
2.5X2.0	3.5	88.9	3.718
3.0X1.5	2.75	69.85	2.968
3.0X2.0	3.5	88.9	3.718
3.0X2.5	4.25	107.95	4.593
4.0X2.5	4.375	111.13	4.593
4.0X3.0	5.125	130.18	5.406

Close

	VNE part number
OD Tube Size	304	316L
2.0X1.0	EG231FPR2.0X1.0	EG231FPR6L20X10
2.0X1.5	EG231FPR2.0X1.5	EG231FPR6L20X15
2.5X1.5	EG231FPR2.5X1.5	EG231FPR6L25X15
2.5X2.0	EG231FPR2.5X2.0	EG231FPR6L25X20
3.0X1.5	EG231FPR3.0X1.5	EG231FPR6L30X15
3.0X2.0	EG231FPR3.0X2.0	EG231FPR6L30X20
3.0X2.5	EG231FPR3.0X2.5	EG231FPR6L30X25
4.0X2.5	EG231FPR4.0X2.5	EG231FPR6L40X25
4.0X3.0	EG231FPR4.0X3.0	EG231FPR6L40X30

Material Type	304
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	2.187

Material Type	304
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.968

Material Type	304
Size	2.5X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.968

Material Type	304
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.718

Material Type	304
Size	3.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.968

Material Type	304
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.718

Material Type	304
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
B, in.	4.593

Material Type	304
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.375
A, mm.	111.13
B, in.	4.593

Material Type	304
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.125
A, mm.	130.18
B, in.	5.406

Material Type	316L
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	2.187

Material Type	316L
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.968

Material Type	316L
Size	2.5X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.968

Material Type	316L
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.718

Material Type	316L
Size	3.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR3.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.968

Material Type	316L
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.5
A, mm.	88.9
B, in.	3.718

Material Type	316L
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.25
A, mm.	107.95
B, in.	4.593

Material Type	316L
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.375
A, mm.	111.13
B, in.	4.593

Material Type	316L
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG231FPR4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.125
A, mm.	130.18
B, in.	5.406
