E28BI - True Y with Female E-Line Ends

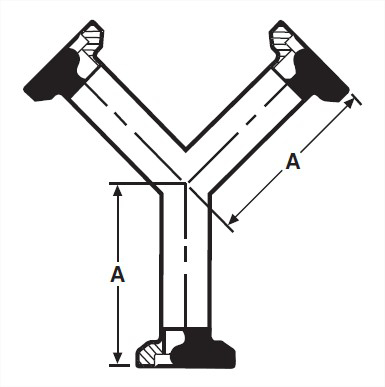

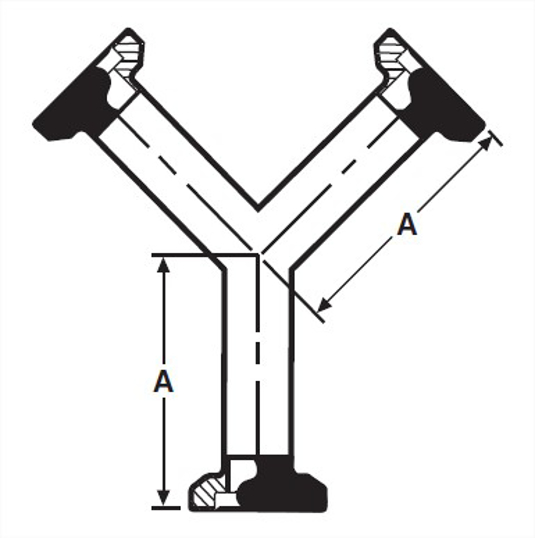

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	3.781	96.04	1
1.5	3.937	100	1.54
2	5.031	127.79	2.36
2.5	6.156	156.36	3.7
3	7.218	183.34	5.3
4	9.343	237.31	9.84
6	9.125	231.78	--

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	3.781
A, mm.	96.04
Product Weight	1

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	3.937
A, mm.	100
Product Weight	1.54

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	5.031
A, mm.	127.79
Product Weight	2.36

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	6.156
A, mm.	156.36
Product Weight	3.7

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	7.218
A, mm.	183.34
Product Weight	5.3

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E28BI4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	9.343
A, mm.	237.31
Product Weight	9.84

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	9.125
A, mm.	231.78

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28BI1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	3.781
A, mm.	96.04
Product Weight	1

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28BI1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	3.937
A, mm.	100
Product Weight	1.54

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28BI2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	5.031
A, mm.	127.79
Product Weight	2.36

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28BI2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	6.156
A, mm.	156.36
Product Weight	3.7

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28BI3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	7.218
A, mm.	183.34
Product Weight	5.3

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E28BI4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	9.343
A, mm.	237.31
Product Weight	9.84

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-28BI
Wayland Part Number	W28BI
Dixon Part Number	B28BI
Sanitary Solutions Part Number	SS28BI
Sanitube Part Number	28BI
A, in.	9.125
A, mm.	231.78
