EG14WSL-C - Long Heavy Wall Tank Ferrule (ASME Coded)

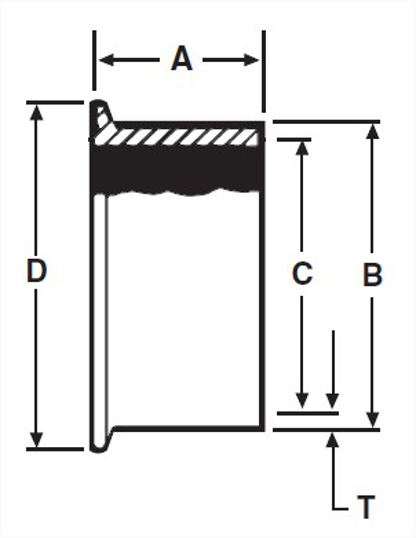

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.
1	2.5	63.5	1.16	0.87	22.1	1.984	50.39	0.145
1.5	2.5	63.5	1.676	1.37	34.8	1.984	50.39	0.153
2	2.5	63.5	2.192	1.87	47.5	2.516	63.91	0.161
2.5	3.5	88.9	2.708	2.37	60.2	3.047	77.39	0.169
3	4.5	114.3	3.224	2.87	72.9	3.579	90.91	0.177
4	4.5	114.3	4.256	3.834	97.38	4.682	118.92	0.211
6	6.25	158.75	6.5	5.782	146.86	6.57	166.88	0.359

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-1X2.5-316
A, in.	2.5
A, mm.	63.5
B, in.	1.16
C, in.	0.87
C, mm.	22.1
D, in.	1.984
D, mm.	50.39
T Nom Wall, in.	0.145

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-1.5X2.5-316
A, in.	2.5
A, mm.	63.5
B, in.	1.676
C, in.	1.37
C, mm.	34.8
D, in.	1.984
D, mm.	50.39
T Nom Wall, in.	0.153

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-2X2.5-316
A, in.	2.5
A, mm.	63.5
B, in.	2.192
C, in.	1.87
C, mm.	47.5
D, in.	2.516
D, mm.	63.91
T Nom Wall, in.	0.161

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-2.5X3.5-316
A, in.	3.5
A, mm.	88.9
B, in.	2.708
C, in.	2.37
C, mm.	60.2
D, in.	3.047
D, mm.	77.39
T Nom Wall, in.	0.169

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-3X4.5-316
A, in.	4.5
A, mm.	114.3
B, in.	3.224
C, in.	2.87
C, mm.	72.9
D, in.	3.579
D, mm.	90.91
T Nom Wall, in.	0.177

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-4X4.5-316
A, in.	4.5
A, mm.	114.3
B, in.	4.256
C, in.	3.834
C, mm.	97.38
D, in.	4.682
D, mm.	118.92
T Nom Wall, in.	0.211

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	14ASME-6X6.25-316
A, in.	6.25
A, mm.	158.75
B, in.	6.5
C, in.	5.782
C, mm.	146.86
D, in.	6.57
D, mm.	166.88
T Nom Wall, in.	0.359
