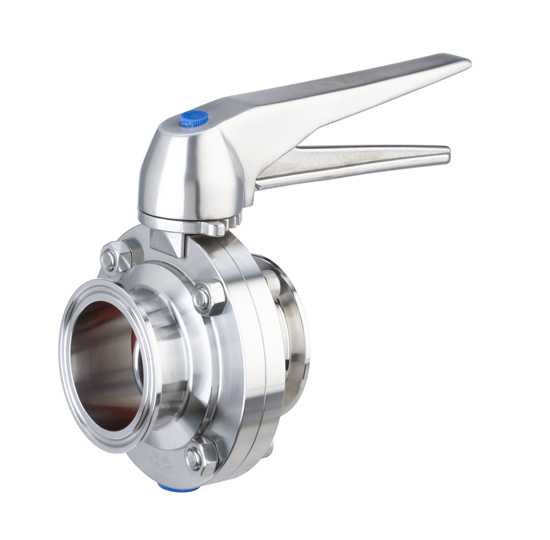

1.5" WELD BUTTERFLY VALVE, 304, SILICONE SEAT

Attribute name	Attribute value
Material Type	304
Size	1.5
Seat Material	Silicone
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Handle Type	STH
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01

Material Type

304

Seat Material

Silicone

Connections

Weld X Weld

Wall Thickness

0.065

Seat-Material

Silicone

Country of Origin

China

Valve Pressure Rating

Max 145 psi

Cad Model File

Click here to request 3D Step File

A, in.

3.386

B, in.

1.5

D, mm.

50.01
