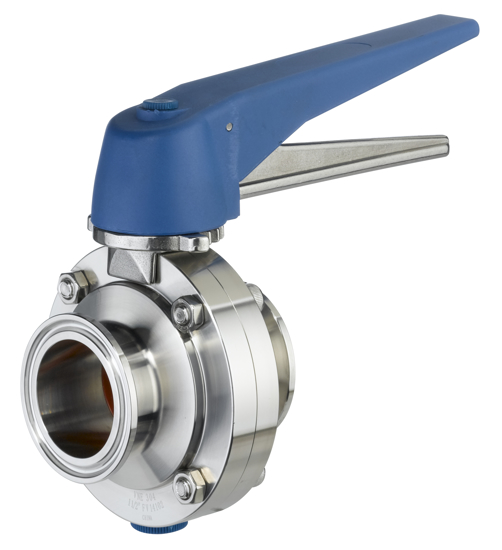

1.5" WELD BUTTERFLY VALVE, 316L, VITON SEAT

Attribute name	Attribute value
Material Type	316
Size	1.5
Seat Material	Viton
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	Viton
Handle Type	PTH
Country of Origin	China
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf
A, in.	3.386
A, mm.	86
B, in.	1.5
D, in.	1.969
D, mm.	50.01
