2.5" WELD SR NC AIR OPER BFV T304 EPDM SEAT AS

Attribute name	Attribute value
Material Type	304
Size	2.5
Seat Material	EPDM
Actuated Valve Fail Position Flow Pattern	Fail Closed
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Seat-Material	EPDM
Country of Origin	China
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Actuator Pressure Rating	72.5-145 psi
Actuator Temperature Rating	15-170 F
Control Top - Switch Type	Open and Close Proximity Switch
Control Top - Voltage	29.5 - 31.6 V
Control Top - Nema/IP Rating	IP 67
Control Top - Cable Entry / Plug	Cable Entry - Gland Included
Control Top Brand	ASI 3.0 VMON II
Actuated-Valve-Fail-Position-Flow-Pattern	Fail Closed
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

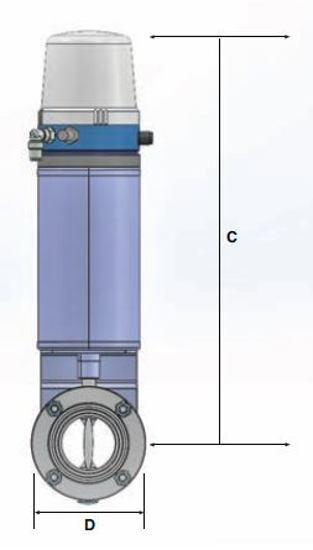

A, in.	10.638
A, mm.	270.21
B, in.	9.792
C, in.	14.458
C, mm.	367.23
E, in.	4.528
E, mm.	115.01
