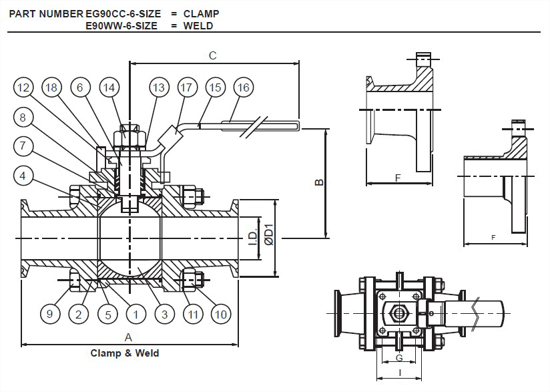

Picture of 3-PC/FULL PORT/2-WAY T316 BALL VALVE/WELD/PTFE CAVITY FILLER

3-PC/FULL PORT/2-WAY T316 BALL VALVE/WELD/PTFE CAVITY FILLER

Manufacturer: VNE

In Stock: 10000

SKU: E90WW-62.5

VNE part number: 622-10707

Please log in to view pricing

Products specifications

Attribute name	Attribute value
Material Type	CF8M (T316)
Size	2.5
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E90WW-62.5.step
Catalog File	valves.pdf
A, in.	7.756
A, mm.	197.0024
B, in.	5
C, in.	9.92
C, mm.	251.968
E, in.	1.75
E, mm.	44.449999999999996
F, in.	2.204
F, mm.	55.9816
G, in.	1.95
G, mm.	49.529999999999994
T Nom Wall, in.	0.065
