Picture of 3-PC/T-PORT/3-WAY T316 BALL VALVE/WELD/PTFE CAVITY FILLER

3-PC/T-PORT/3-WAY T316 BALL VALVE/WELD/PTFE CAVITY FILLER

Manufacturer: VNE

In Stock: 10000

SKU: E93WWW-63.0-T

VNE part number: 622-10735

Please log in to view pricing

Products specifications

Attribute name	Attribute value
Material Type	CF8M (T316)
Size	3
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	3
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-63.0-T.step
Catalog File	valves.pdf

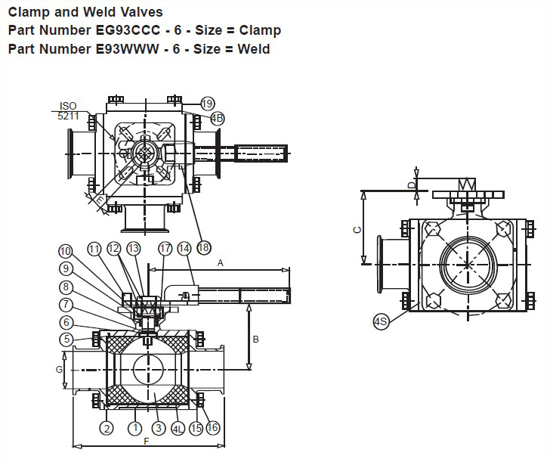

A, in.	15.75
A, mm.	400.04999999999995
B, in.	5.25
C, in.	5
C, mm.	127
D, in.	0.906
D, mm.	23.0124
E, in.	0.669
E, mm.	16.9926
F, in.	10.25
F, mm.	260.34999999999997
G, in.	2.875
G, mm.	73.02499999999999
T Nom Wall, in.	0.065
