45 DEG ELBOW CLAMP T316L 20 RA ID/LT POL OD SF1

Attribute name	Attribute value
Size	0.75
Surface Finish	PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD
Industry Standard	ASME BPE;3A

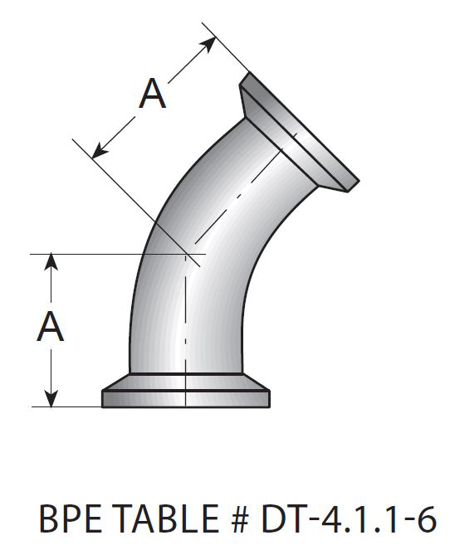

BPE Table #	DT-4.1.1-6
ID / OD Polish	20 µin Mechanical ID / Light Polish OD
Polish Code	PC
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG2K6L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in.	1
A, mm.	25.4
Product Weight	0.109

Surface Finish

PC Finish - SF1 - 20 µin Mechanical ID / Light Polish OD

BPE Table #

DT-4.1.1-6

Polish Code

PC

OD Tube Size

0.75

Material-Type

316L

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxPure BPE Fittings.pdf

A, in.

1

Product Weight

0.109
