45 DEG ELBOW CLAMP X WELD 6 MO 20 RA EP ID/32 RA OD SF5

Attribute name	Attribute value
Size	0.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-5
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2KC6L.5-...STEP
Catalog File	MaxCore.pdf
Alfa Laval Part Number	B2KMW

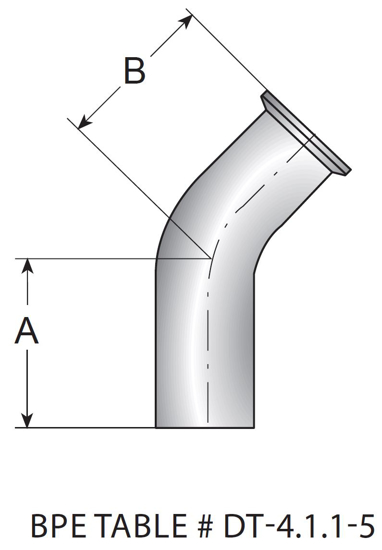

A, in.	2.25
A, mm.	57.15
B, in.	1
Product Weight	0.117
