45 DEG ELBOW CLAMP X WELD A22 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	1
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-5
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2KC6L1.0-...STEP
Catalog File	MaxCore.pdf

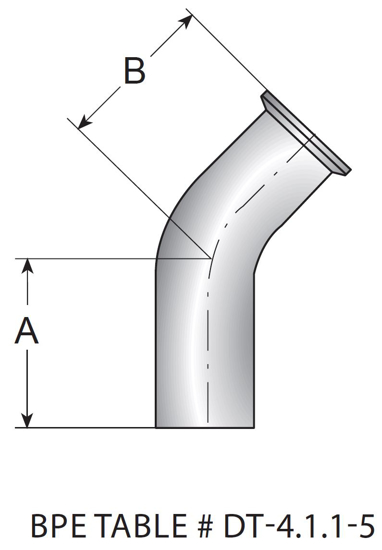

A, in.	2.25
A, mm.	57.15
B, in.	1.125
Product Weight	0.33

Surface Finish

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

BPE Table #

DT-4.1.1-5

Polish Code

PL

OD Tube Size

1

Material-Type

A22

Material Trade Names (Reference)

Hastelloy C22®

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxCore.pdf

A, mm.

57.15

Product Weight

0.33
