45 DEGREE ELBOW ONE END WELD O THER END 14&13H T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-4-7-316

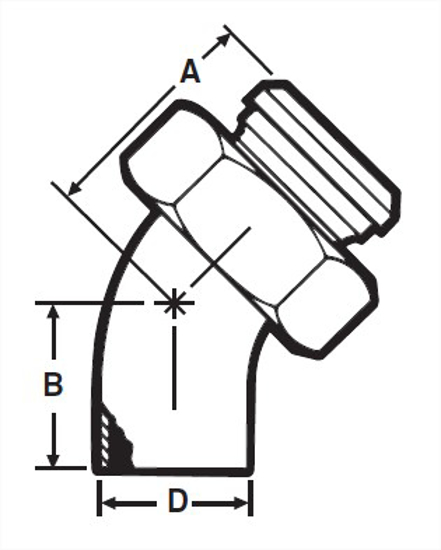

A, in.	6.031
A, mm.	153.19
B, in.	4.812
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	6.76
