45 DEGREE WELD ELBOW T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KS2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KS
Steel O’brien Part Number	L2KS-2-7-316
Wayland Part Number	WL2KS
Dixon Part Number	B2KS
Sanitary Solutions Part Number	SS2KS
Sanitube Part Number	L2KS

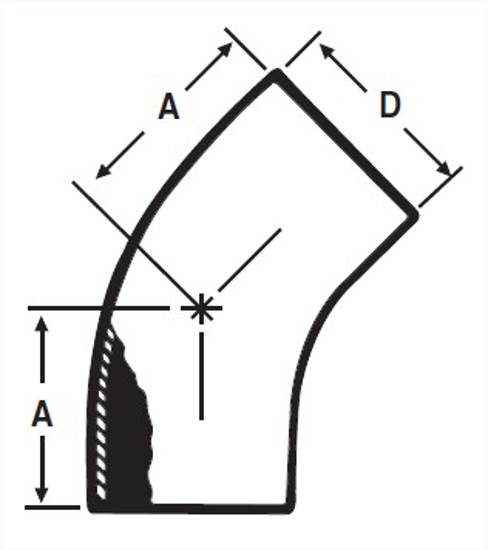

A, in.	2.312
A, mm.	58.72
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.54

Material Type

316L

Industry Standard

3A

Connections

Weld X Weld

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E2KS2.0.STEP

Alfa Laval Part Number

L2KS

Wayland Part Number

WL2KS

Sanitary Solutions Part Number

SS2KS

A, in.

2.312

D, in.

2

T Nom Wall, in.

0.065
