88 DEG ELBOW CLAMP T316L 20RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE;3A
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG2C886L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

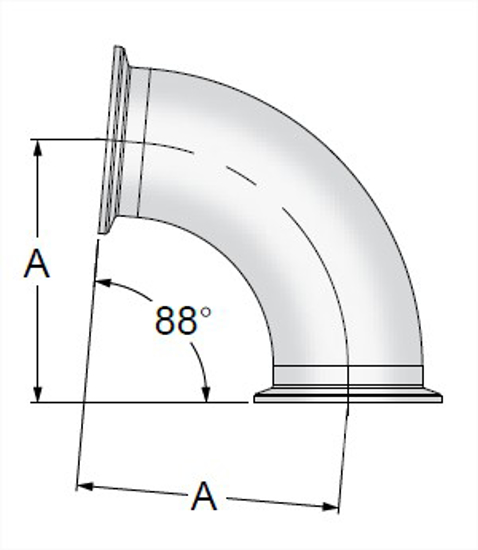

A, in.	1.63
A, mm.	41.4
Product Weight	0.128

Surface Finish

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

BPE Table #

N/A

Polish Code

PL

OD Tube Size

0.75

Material-Type

316L

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxPure BPE Fittings.pdf

A, in.

1.63

Product Weight

0.128
