90 DEG ELBOW CLAMP 6 MO 20 RA EP ID/32 RA OD SF5

Attribute name	Attribute value
Size	2.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.1-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	6MO
UNS #	N08367
Material Trade Names (Reference)	AL6XN, AL-6XN®, ULTRA 6XN®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG2C6L2.5-...STEP
Catalog File	MaxCore.pdf

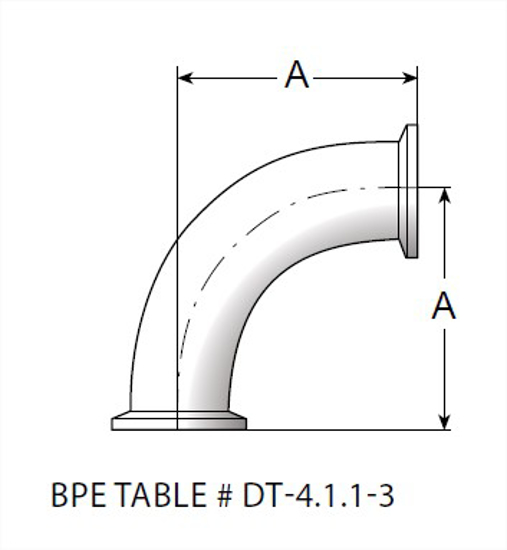

A, in.	4.25
A, mm.	107.95
Product Weight	1.1

Size

2.5

Industry Standard

ASME BPE

ID / OD Polish

20 µin Electropolished ID / 32 µin Mechanical OD

SF Number

SF5

Wall Thickness

0.065

UNS #

N08367

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

TEG2C6L2.5-...STEP

A, in.

4.25

Product Weight

1.1
