90 DEG ELBOW CLAMP T316L 15 RA EP ID/32 RA OD SF4

Attribute name	Attribute value
Size	0.75
Surface Finish	PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE;3A

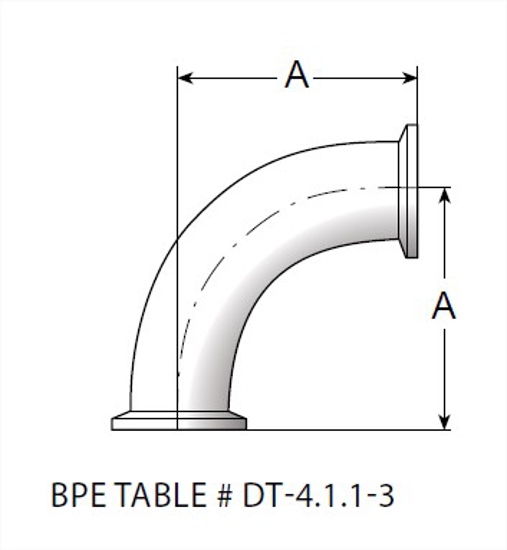

BPE Table #	DT-4.1.1-3
ID / OD Polish	15 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PM
SF Number	SF4
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG2C6L.75-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf
A, in.	1.625
A, mm.	41.28
Product Weight	0.143

Surface Finish

PM Finish - SF4 - 15 µin Electropolished ID / 32 µin Mechanical OD

BPE Table #

DT-4.1.1-3

Polish Code

PM

OD Tube Size

0.75

Material-Type

316L

Material Test Reports

MTR’s Ship Automatically With Each Order

Pressure Rating

Per current BPE standards - section DT

Catalog File

MaxPure BPE Fittings.pdf

A, in.

1.625

Product Weight

0.143
