90 DEGREE ELBOW WITH TANGENTS ONE END CLAMP T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2C6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2CM
Steel O’brien Part Number	L2CM-6-7-316
Wayland Part Number	WL2CM
Dixon Part Number	B2CM
Sanitary Solutions Part Number	SS2CM
Sanitube Part Number	L2CM

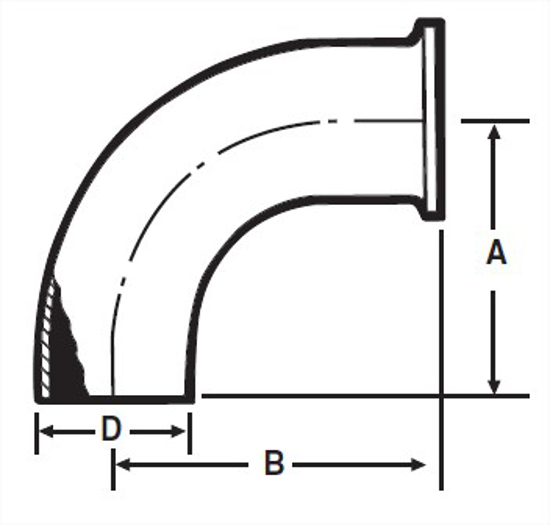

A, in.	9
A, mm.	228.6
B, in.	9.875
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109

Size

6

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

6

Material-Type

316L

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

Steel O’brien Part Number

L2CM-6-7-316

Dixon Part Number

B2CM

Sanitube Part Number

L2CM

A, mm.

228.6

D, in.

6

T Nom Wall, in.

0.109
