90 DEGREE RED ELBOW CLAMP X BEVEL SEAT 304

Attribute name	Attribute value
Material Type	304
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

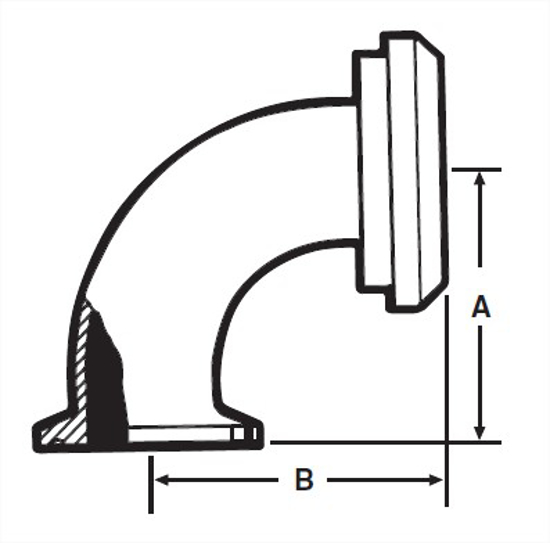

A, in.	5
A, mm.	127
B, in.	5.437

Size

4.0X3.0

Connections

Clamp X Plain Bevel Seat

Wall Thickness

.083X.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

Click here to request 3D Step File

A, in.

5

B, in.

5.437
