92 DEG ELBOW CLAMP X WELD T316L 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	BPE;3A
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE2C926L1.5-...STEP
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

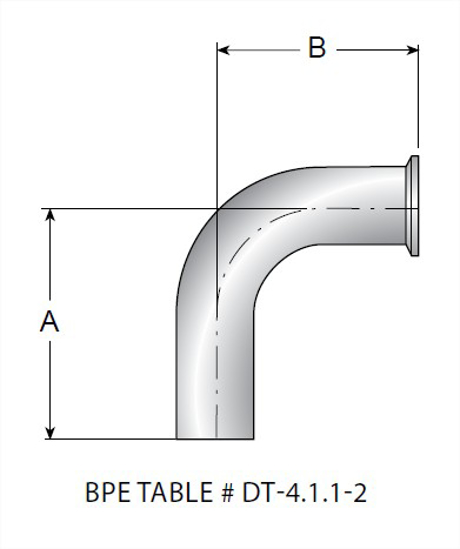

A, in.	3.73
A, mm.	94.74
B, in.	2.73
Product Weight	0.523
