ADAPTER 14&13H X FEMALE NPT T316L

Attribute name	Attribute value
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-222.5.STEP
Catalog File	Fittings Catalog.pdf

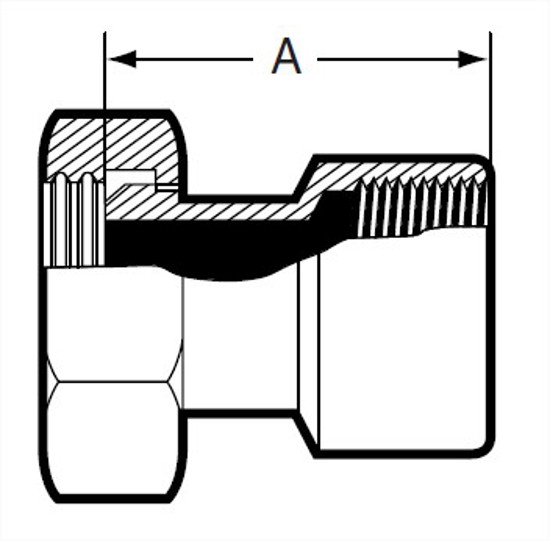

A, in.	3.375
A, mm.	85.73
Product Weight	2.7

Material Type

316L

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

2.5

Material-Type

316L

Passivated

Special Request

Catalog File

Fittings Catalog.pdf

A, mm.

85.73
