ADAPTER CLAMP X MNPT T316L 20 RA ID/32 RA OD SF1

Attribute name	Attribute value
Size	.5X.375
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	MaxPure
BPE Table #	N/A
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	.5X.375
Wall Thickness	.065X.035
Material-Type	316L
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	Click here to request 3D Step File
Catalog File	MaxPure BPE Fittings.pdf
Specification Document	VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

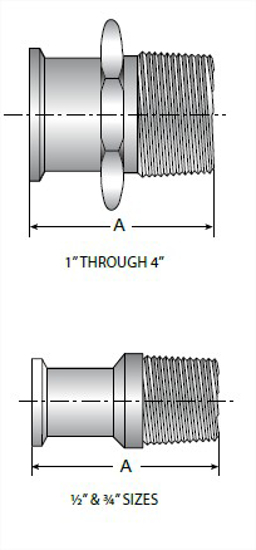

A, in.	2
A, mm.	50.8
Product Weight	0.156

Size

.5X.375

Industry Standard

MaxPure

ID / OD Polish

20 µin Mechanical ID / 32 µin Mechanical OD

SF Number

SF1

Wall Thickness

.065X.035

Country of Origin

USA, Israel

Passivated

Passivated per ASTM A967

Cad Model File

Click here to request 3D Step File

Specification Document

VNE Maxpure Fittings Specifications and Submittal Documentation.pdf

A, mm.

50.8
