AIR VALVE/SHUT-OFF TEE BODY/ CLAMP CONN/NC ACTUATOR/SILICONE

Attribute name	Attribute value
Size	4
Seat Material	SILICONE
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Seat-Material	SILICONE
Country of Origin	Israel
Material Test Reports	COC Available for 316L Materials
Pressure Table	PVE Working Pressure Data.jpg
Configuration and Flow Direction Image Download	pveflow7nc.jpg
IOM Valve	IOM MaxClean Single Seat PVE Valves.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	MaxClean Single Seat PVE Valves.pdf

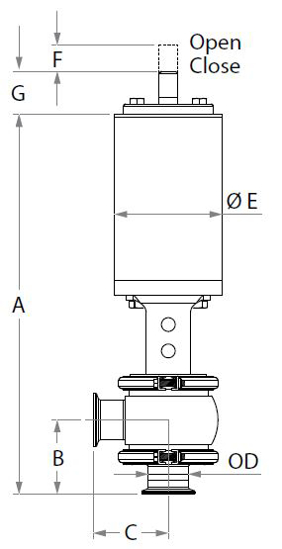

A, in.	21.42
A, mm.	544
B, in.	5
C, in.	4.92
C, mm.	125
E, in.	6.61
E, mm.	168
F, in.	1.26
F, mm.	32
G, in.	1.65
G, mm.	42
T Nom Wall, in.	0.083

Seat Material

SILICONE

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

4

Material-Type

316L

Country of Origin

Israel

Pressure Table

PVE Working Pressure Data.jpg

IOM Valve

IOM MaxClean Single Seat PVE Valves.pdf

Catalog File

MaxClean Single Seat PVE Valves.pdf

A, mm.

544

C, in.

4.92

E, in.

6.61

F, in.

1.26

G, in.

1.65

T Nom Wall, in.

0.083
