BALL CHECK VALVE, CLAMP CONNECTIONS, T316

Attribute name	Attribute value
Size	2
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-62.0.STEP
Catalog File	valves.pdf

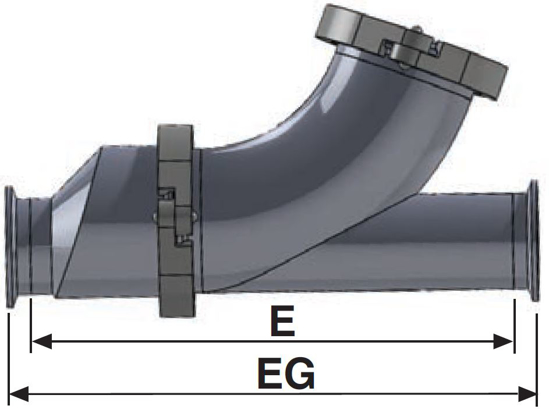

O.A.L, in.	11
O.A.L., mm.	279.4
Product Weight	6.3

Size

2

Industry Standard

3A;FDA Title 21, Paragraph 177.2600

Connections

Clamp X Clamp

Wall Thickness

0.065

Seat-Material

BUNA

Material Test Reports

AVAILABLE UPON REQUEST

Valve Temperature Rating

15°F to 200°F

Catalog File

valves.pdf

O.A.L., mm.

279.4
