BALL CHECK VALVE, WELD CONNECTIONS, T316

Attribute name	Attribute value
Size	1.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

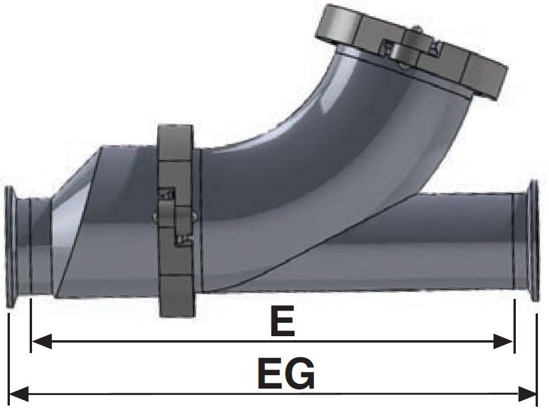

O.A.L, in.	9
O.A.L., mm.	228.6
Product Weight	4.8
