BUTTERFLY VALVE CLAMP CONN. EPDM SEAT, T316 WETTED

Attribute name	Attribute value
Material Type	316
Size	2.5
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316
Seat-Material	EPDM
Country of Origin	Germany
Material Test Reports	MTR's Available Upon Request
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

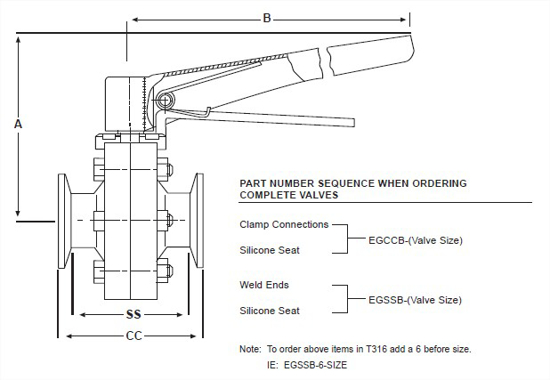

A, in.	5.156
A, mm.	130.96
B, in.	7
CC, in.	3.375
CC, mm.	85.73
SS, in.	2.375
SS, mm.	60.33
