BUTTERFLY VALVE/CLAMP CONN. SILICONE SEAT, T304

Attribute name	Attribute value
Material Type	304
Size	1
Seat Material	EPDM
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Seat-Material	Silicone
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Valve Pressure Rating	Max 145 psi
Valve Temperature Rating	15 - 200 F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

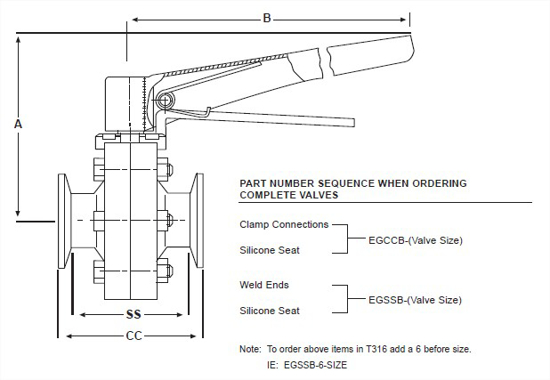

A, in.	4.593
A, mm.	116.66
B, in.	7
CC, in.	2.812
CC, mm.	71.42
SS, in.	1.812
SS, mm.	46.02
