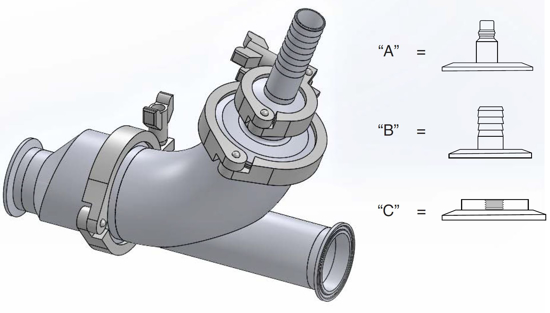

CL BALL CHECK VLV W/VITON BALL VITON AIR BLOW/3/8 FNPT T316

Attribute name	Attribute value
Size	3
Seat Material	Viton
Air Connection Size	.375 FNPT
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X .375" FNPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	212° F
Cad Model File	Click here to request 3D Step File
Catalog File	valves.pdf

Seat Material

Viton

Industry Standard

3A;FDA Title 21, Paragraph 177.2600

Connections

Clamp X Clamp X .375" FNPT

Wall Thickness

0.065

Seat-Material

VITON

Material Test Reports

AVAILABLE UPON REQUEST

Valve Temperature Rating

212° F

Catalog File

valves.pdf
