CLAMP FERRULE SHORT T304 3A

Attribute name	Attribute value
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2CS1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WMPS
Steel O’brien Part Number	14WMP-1.5-304
Wayland Part Number	W14WMP
Dixon Part Number	14WMP
Sanitary Solutions Part Number	SS14WMP
Sanitube Part Number	14WMP

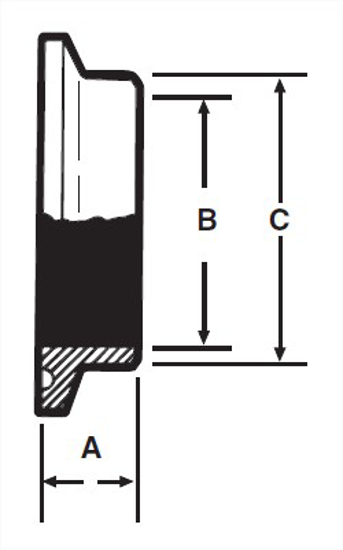

A, in.	0.5
A, mm.	12.7
B, in.	1.37
Product Weight	0.1

Material Type

304

Industry Standard

3A

Connections

Clamp X Weld

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG2CS1.5.STEP

Alfa Laval Part Number

14WMPS

Wayland Part Number

W14WMP

Sanitary Solutions Part Number

SS14WMP

A, in.

0.5

B, in.

1.37
