CLAMP X RUBBER HOSE ADAPTER T316L

Attribute name	Attribute value
Material Type	316L
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR2X1.5-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR

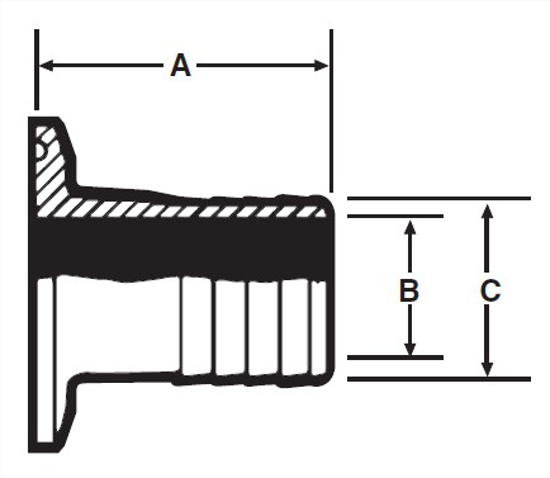

A, in.	3.5
A, mm.	88.9
B, in.	1.37
C, in.	1.5
C, mm.	38.1

Size

2.0X1.5

Connections

Clamp X Hose Barb

Wall Thickness

0.065

Material Test Reports

MTR’s Available Upon Request

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG14RT2.0X1.5.STEP

Alfa Laval Part Number

14MPHR

Wayland Part Number

W14MPHR

Sanitary Solutions Part Number

SS14MPHR

A, in.

3.5

B, in.

1.37

C, mm.

38.1
