CONCENTRIC REDUCER CLAMP X WELD T316L #7 3A

Attribute name	Attribute value
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31CW4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf

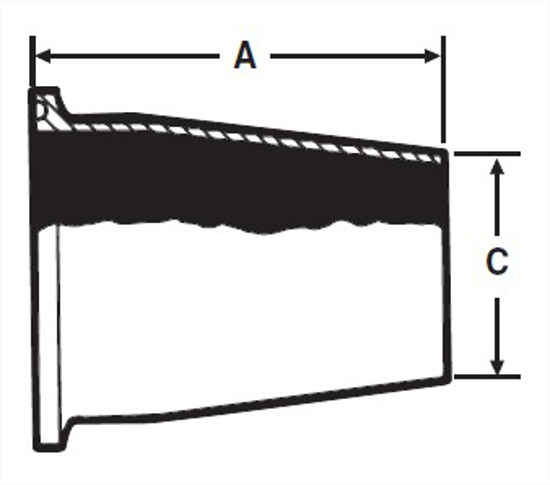

A, in.	6.625
A, mm.	168.28
C, in.	2.5
C, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.6
