CONCENTRIC REDUCER LARGE END 1 4 SMALL END WELD T316L 3A

Attribute name	Attribute value
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E31PW4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31P
Wayland Part Number	W31P
Dixon Part Number	B31P
Sanitary Solutions Part Number	SS31P
Sanitube Part Number	L31P

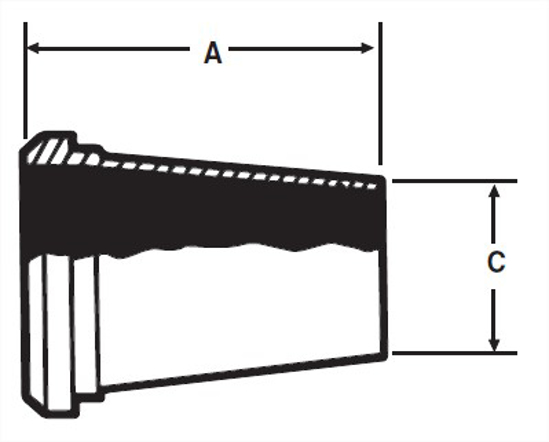

A, in.	5
A, mm.	127
C, in.	3
C, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.78

Material Type

316L

Industry Standard

3A

Connections

Plain Bevel Seat X Weld

Wall Thickness

.083X.065

Material Test Reports

MTR’s Available Upon Request

Cad Model File

E31PW4.0X3.0.STEP

Alfa Laval Part Number

L31P

Dixon Part Number

B31P

Sanitube Part Number

L31P

A, mm.

127

C, mm.

76.2

Product Weight

1.78
