CONCENTRIC REDUCER WELD T304 3A

Attribute name	Attribute value
Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L31
Wayland Part Number	W31W
Dixon Part Number	B31W
Sanitary Solutions Part Number	SS31W
Sanitube Part Number	31W

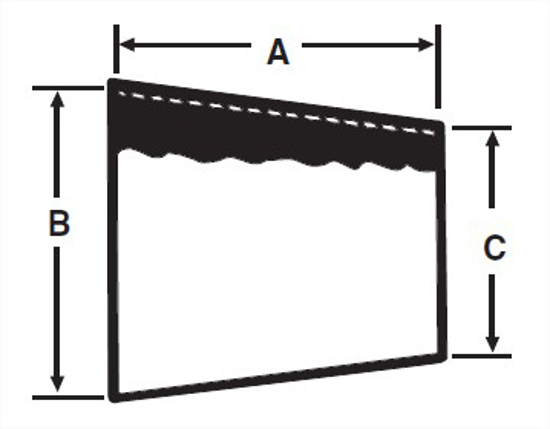

A, in.	5.5
A, mm.	139.7
B, in.	6
C, in.	4
C, mm.	101.6
T Nom Wall, in.	0.109 x 0.083
Product Weight	2.42

Material Type

304

Industry Standard

3A

Connections

Weld X Weld

Wall Thickness

.109X.083

Material Test Reports

COC Available for 304 Materials

Cad Model File

Click here to request 3D Step File

Alfa Laval Part Number

L31

Dixon Part Number

B31W

Sanitube Part Number

31W

A, mm.

139.7

C, in.

4

T Nom Wall, in.

0.109 x 0.083
