CROSS CLAMP T304 3A

Attribute name	Attribute value
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG92.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	9MP
Steel O’brien Part Number	9MP-2-304
Wayland Part Number	W9MP
Dixon Part Number	B9MP
Sanitary Solutions Part Number	SS9MP
Sanitube Part Number	9MP

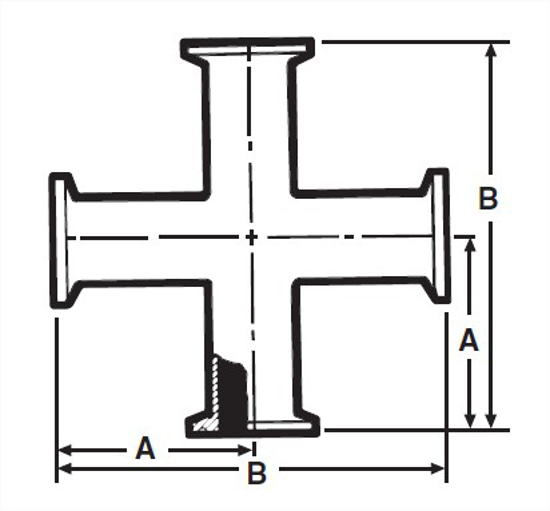

A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	1.66

Material Type

304

Industry Standard

3A

Connections

Clamp X Clamp X Clamp X Clamp

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

EG92.0.STEP

Alfa Laval Part Number

9MP

Wayland Part Number

W9MP

Sanitary Solutions Part Number

SS9MP

A, in.

3.5

B, in.

7
