DIN FEMALE PLAIN FERRULE T316

Attribute name	Attribute value
Material Type	316L
Size	DN15
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Plain End X Weld
OD Tube Size	DN15
Wall Thickness	1.5
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

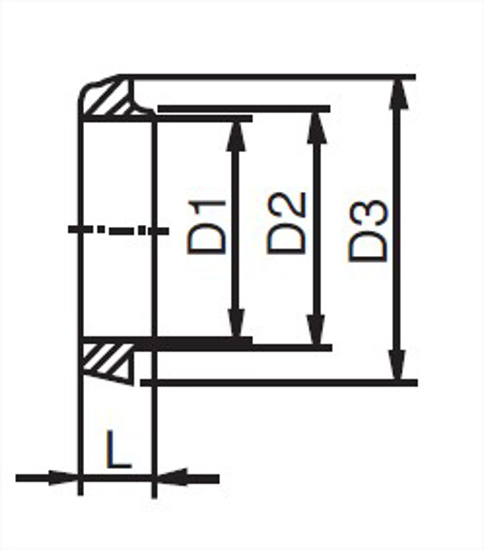

D1, in.	0.63
D1, mm.	16
D2, in.	0.75
D2, mm.	19
D3, in.	1.12
D3, mm.	28.5
L, in.	0.51
L, mm.	13

Material Type

316L

Industry Standard

Din 11851;Din 11853

Connections

Din 11851 Plain End X Weld

Wall Thickness

1.5

Country of Origin

Germany

Cad Model File

Click here to request 3D Step File

D1, in.

0.63

D2, in.

0.75

D3, in.

1.12

L, in.

0.51
