DIN LINER BLANK CAP T316

Attribute name	Attribute value
Material Type	316L
Size	DN20
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Cap
OD Tube Size	DN20
Material-Type	316L
Country of Origin	Germany
Material Test Reports	MTR’s Available Upon Request
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

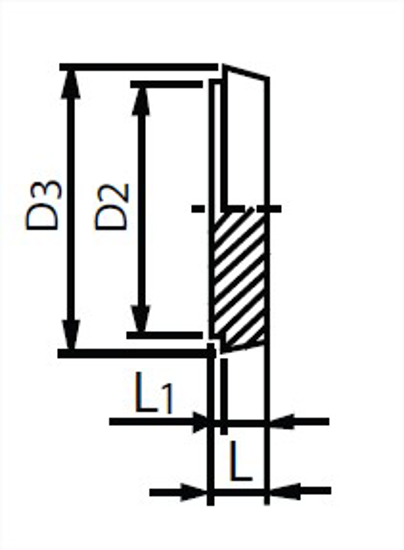

D2, in.	1.21
D2, mm.	30.8
D3, in.	1.44
D3, mm.	36.5
L, in.	0.45
L, mm.	11.5
L1, in.	0.14
L1, mm.	3.5

Material Type

316L

Industry Standard

Din 11851;Din 11853

Connections

Din 11851 Cap

Material-Type

316L

Material Test Reports

MTR’s Available Upon Request

Catalog File

Fittings Catalog.pdf

D2, mm.

30.8

D3, mm.

36.5

L, mm.

11.5

L1, mm.

3.5
