DIN MALE THREADED FERRULE 304

Attribute name	Attribute value
Material Type	304
Size	DN125
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN125
Wall Thickness	2
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

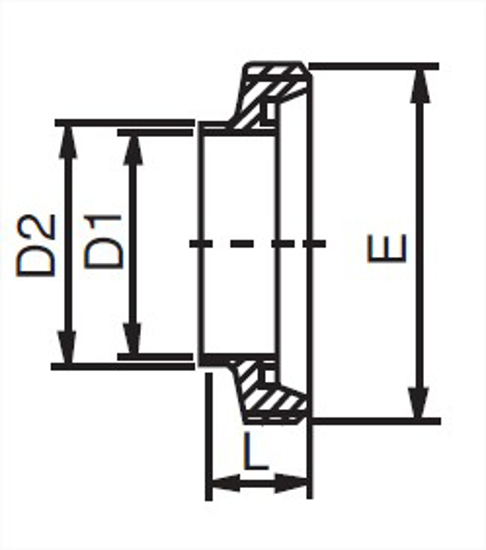

D1, in.	4.92
D1, mm.	125
D2, in.	5.08
D2, mm.	129
E, in.	Rd 160 x 1/4"
L, in.	1.4
L, mm.	35.5

Material Type

304

Industry Standard

Din 11851;Din 11853

Connections

Din 11851 Thread X Weld

Wall Thickness

2

Country of Origin

Germany

Cad Model File

Click here to request 3D Step File

D1, in.

4.92

D2, in.

5.08

E, in.

Rd 160 x 1/4"

L, mm.

35.5
