DIN MALE THREADED FERRULE 304

Attribute name	Attribute value
Material Type	304
Size	DN32
Industry Standard	Din 11851;Din 11853
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Din 11851 Thread X Weld
OD Tube Size	DN32
Wall Thickness	1.5
Material-Type	304
Country of Origin	Germany
Material Test Reports	COC Available for 304 Materials
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf

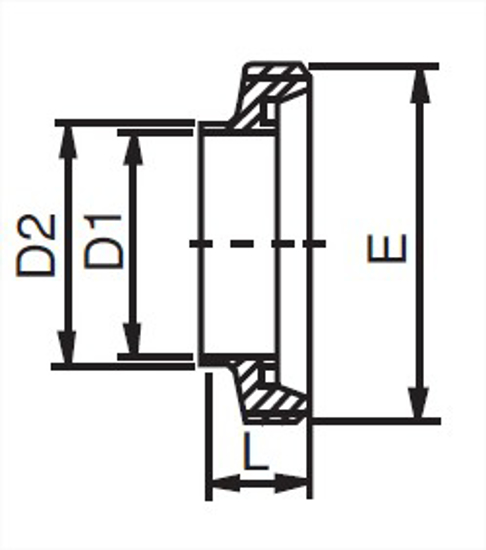

D1, in.	1.26
D1, mm.	32
D2, in.	1.38
D2, mm.	35
E, in.	Rd 58 x 1/6"
L, in.	0.87
L, mm.	22
Product Weight	0.3

Size

DN32

ID / OD Polish

32 µin Mechanical ID / 32 µin Mechanical OD

OD Tube Size

DN32

Material-Type

304

Material Test Reports

COC Available for 304 Materials

Catalog File

Fittings Catalog.pdf

D1, mm.

32

D2, mm.

35

L, in.

0.87

Product Weight

0.3
